Can display three parameters at same time
With parameter definitions, more easy to use
Supports parameter backup and upload/download
LCD panel is a Human-Machine-Interface (HMI) for debugging inverter parameters. The following is keypad function structure and display interface

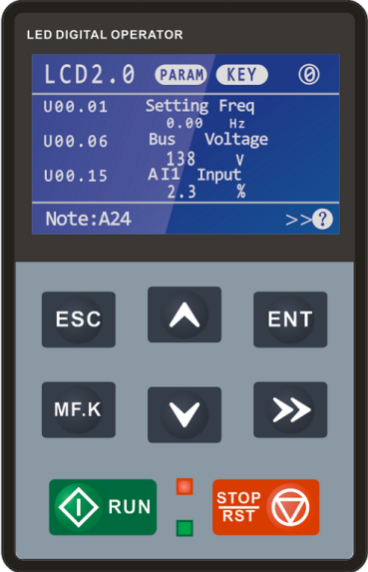

Figure 1-1 Keypad structure
Figure 1-2 Keypad interface
Symbol | Name | Function |
| Escape | Exit |
| Enter | Enter the menu interfaces level by level,and confirm the parameter setting |
| Increment | Increase data or function code |
| Decrement | Decrease data or function code |
| Shift | Select the displayed parameters in turn in the stop or running state, and select the digit to be modified when modifying parameters |
| Multifunction | Perform function switchover (such as jog run and quick switchover of command source or direction) according to the setting of F16.00. |
| Run | Start the inverter in the keypad control mode |
| Stop/Reset | Stop the inverter when it is in the running state and perform the reset operation when it is in the fault state. The functions of this key are restricted in F16.01. |
| Key combinations 1 | The inverter will free stop when the run and stop key are pressed simultaneously. |
| Key combinations 2 | The frequency inverter can be quickly set digital given frequency when the MF.K and >> keys are pressed at the same time, |
| Key combinations 3 | ESC and >> keys are pressed simultaneously to unlock the keypad |
| Key combinations 4 | ESC and ENT keys are pressed simultaneously for keypad lock (under the condition that F16.02 is not equal to 0) |
